OUR FLEET

AML Shipping offer regular liner container shipping services to East Malaysia and Brunei ports. These services with the support of extensive offices and agencies at major ports in East Malaysia and Brunei allow us to provide maritime transport solutions to our customers. We publish our sailing schedules regularly on our website.

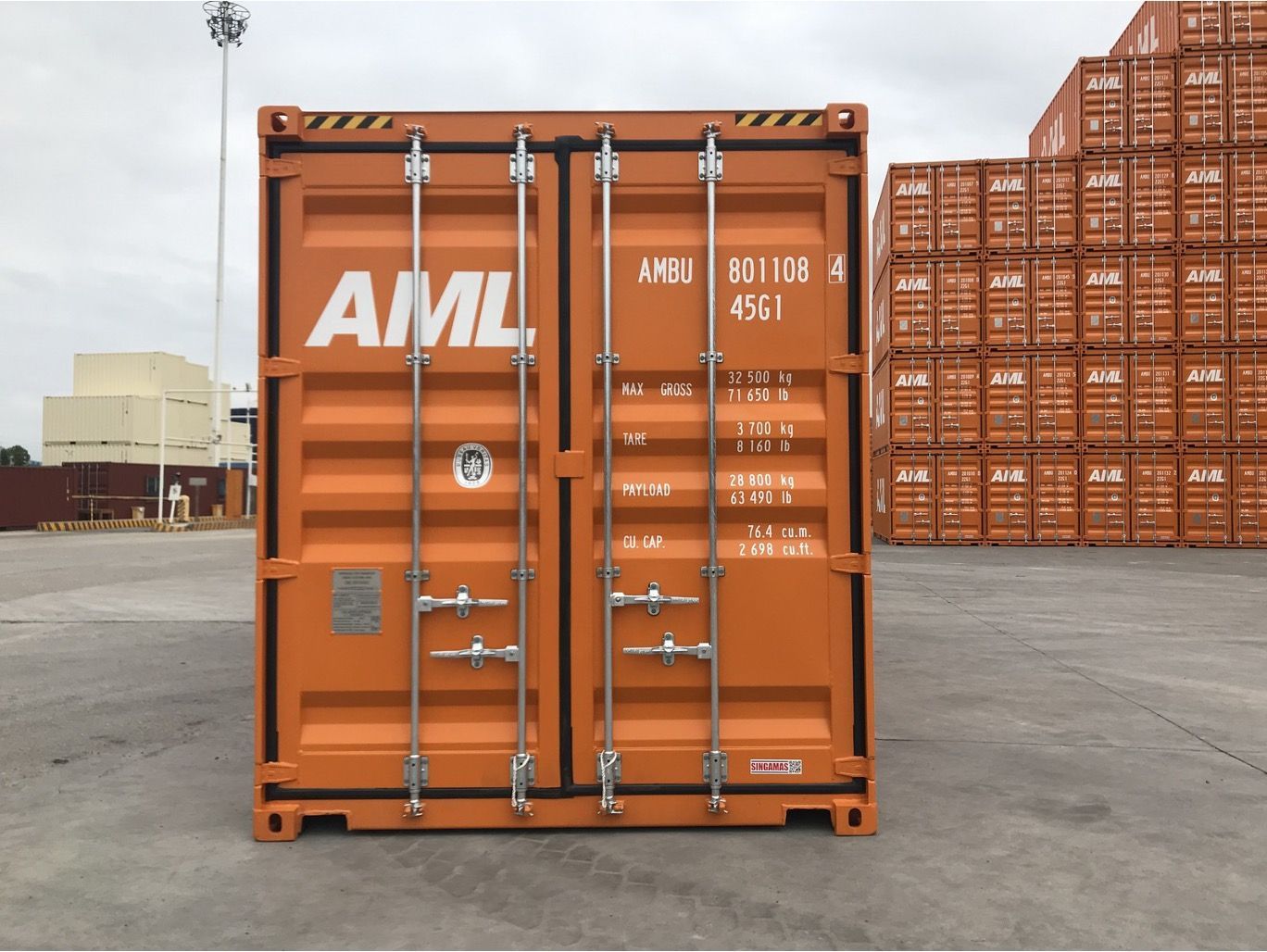

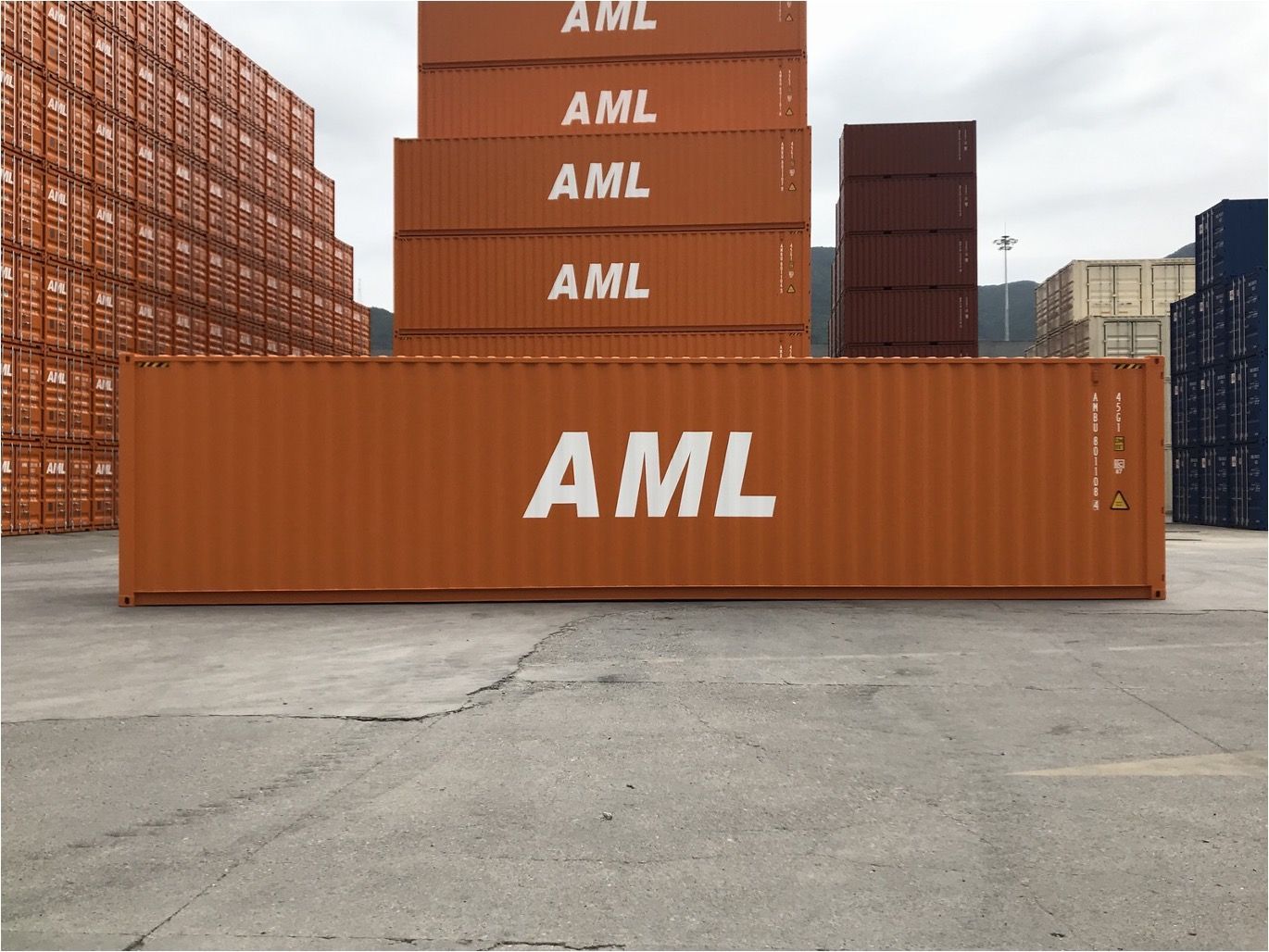

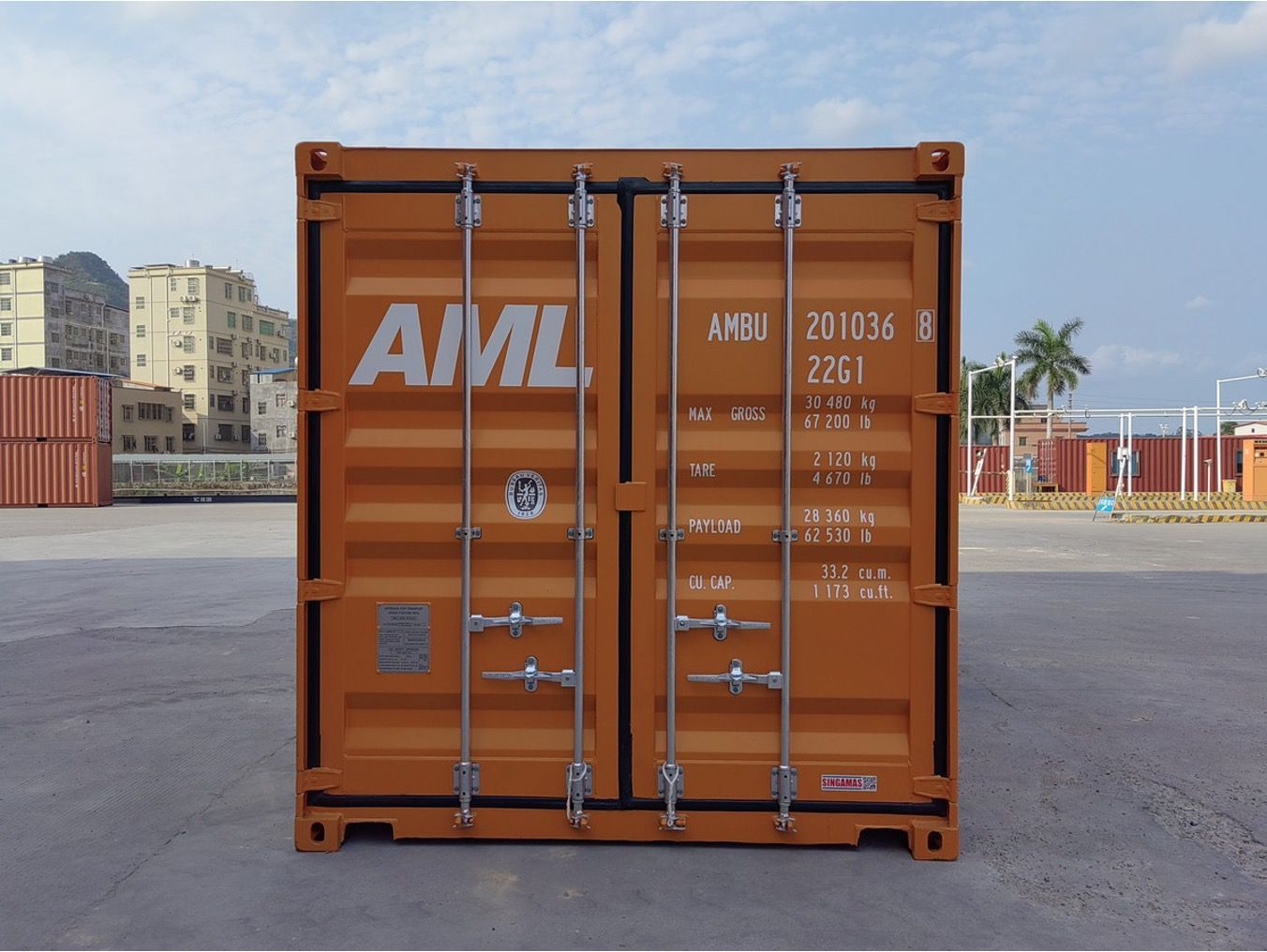

Description 20' Standard 40' High Cube
SPECIFICATIONS 8' 6" Standard 9' 6" Hi-Cube
Internal - Dimension
Length 5,898 mm 12,032 mm
Width 2,352 mm 2,352 mm
Height 2,393 mm 2,698 mm
Door Opening Width 2,340 mm 2,340 mm
Door Opening Height 2,280 mm 2,585 mm
Cubic Capacity 33.2 m3 76.40 m3
Weight & Payload
Tare Weight (Design Estimate) 2,120 kg 3,700 kg
Maximum Gross Weight 30,480 kg 32,500 kg
Maximum Payload 28,360 kg 28,800 kg

General Purpose Container

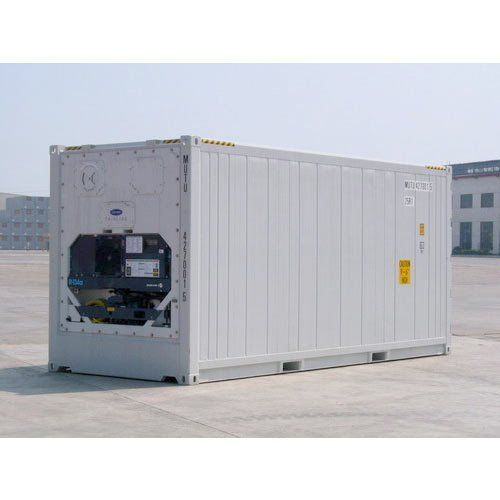

Reefer Container

Description 20' Reefer
SPECIFICATIONS Model 2061/2084
Internal - Dimension
Length 5,170 mm
Width 2,235 mm
Height 2,250 mm
Door Opening Width 2,235 mm
Door Opening Height 2,215 mm
Cubic Capacity 26.0 m3
Weight & Payload
Tare Weight (Design Estimate) 3,800 kg
Maximum Gross Weight 22,860 kg
Maximum Payload 19,060 kg
Description 20' Open Top 40' Open Top
SPECIFICATIONS 8' 6" Standard 8' 6" Standard
Internal - Dimension
Length 5,880 mm 12,010 mm
Width 2,330 mm 2,330 mm
Height 2,310 mm 2,310 mm
Door Opening Width 2,280 mm 2,280 mm
Door Opening Height 2,330 mm 2,330 mm
Cubic Capacity 32.6 m3 66.7 m3
Weight & Payload
Tare Weight (Design Estimate) 2,300 kg 3,950 kg
Maximum Gross Weight 24,000 kg 30,480 kg
Maximum Payload 21,700 kg 26,530 kg

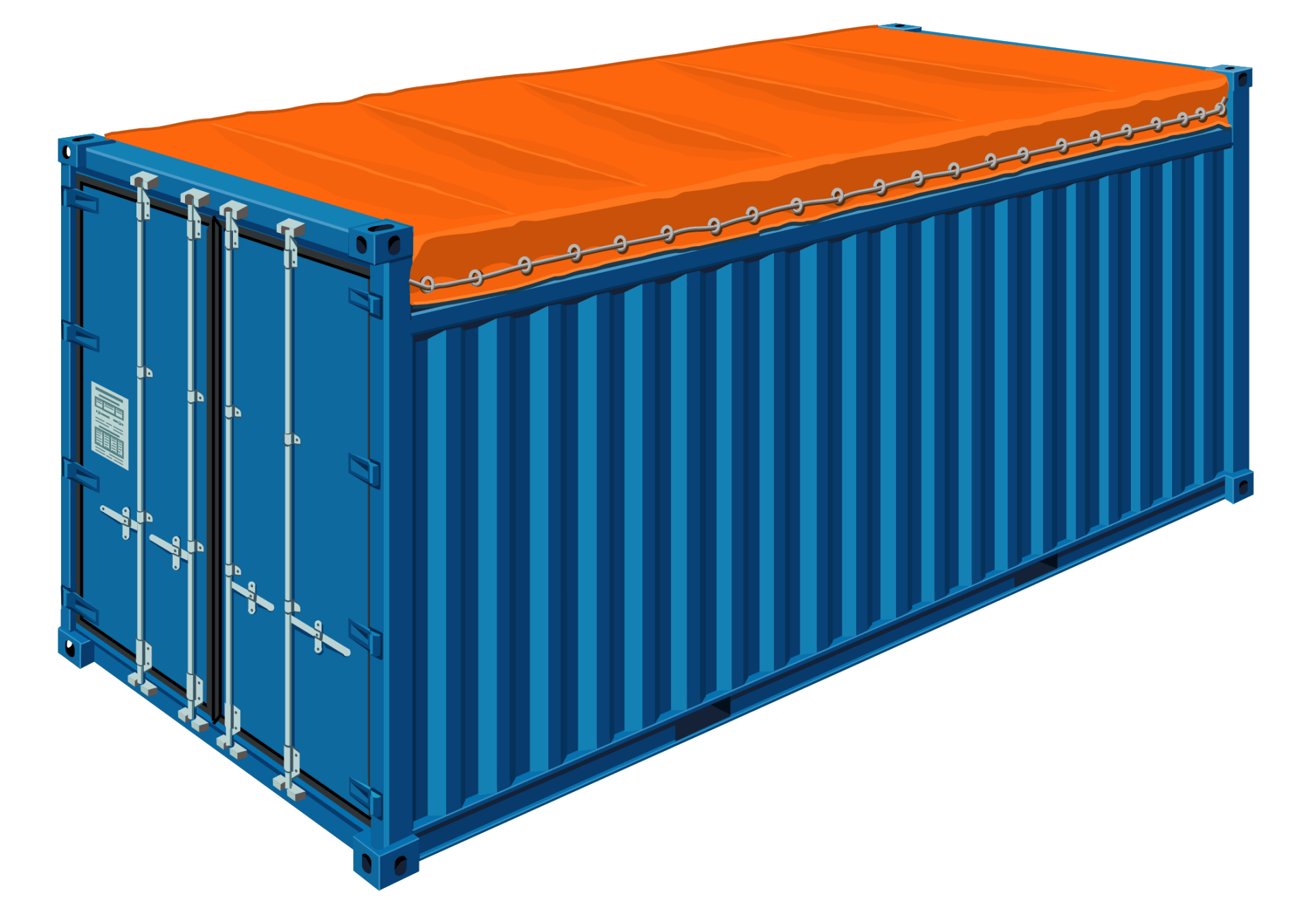

Open Top Container

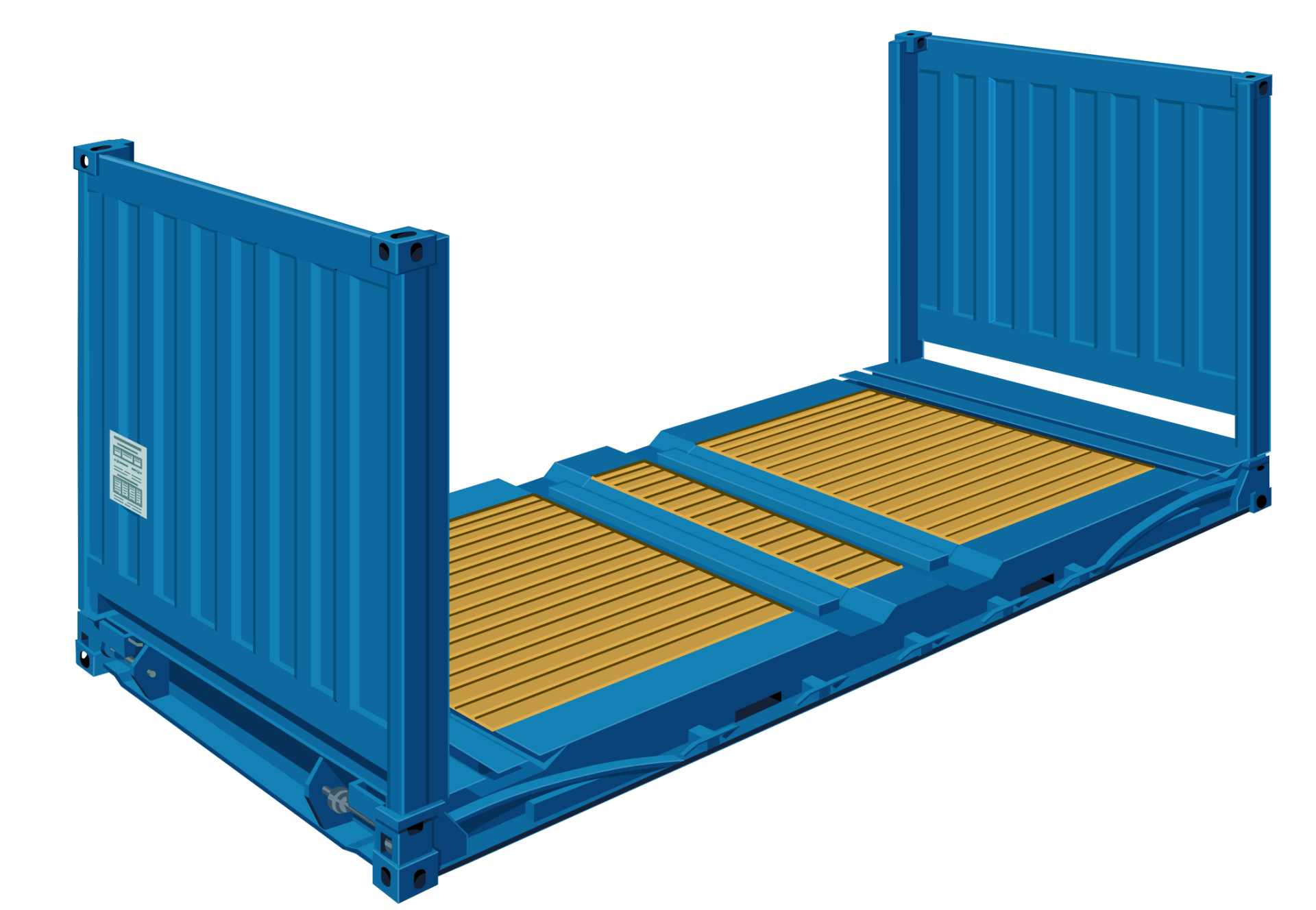

Flatrack Container

Description 20' Flatrack 40' Flatrack
SPECIFICATIONS
Internal - Dimension
Length 5,850 mm 12,050 mm
Width 2,230 mm 2,120 mm
Height 2,150 mm 1,960 mm
Weight & Payload
Tare Weight (Design Estimate) 3,100 kg 5,646 kg
Maximum Gross Weight (approx) 23,115 kg 36,122 kg
Maximum Payload (approx) 20,015 kg 30,476 kg
